The SIMO YRKS series wound rotor high voltage motor features both air and water cooling for optimal performance in heavy-duty industrial applications. Known for its reliability and high-efficiency, it is ideal for power plants, oil drilling, and other high-demand industries requiring superior motor performance and cooling capabilities.

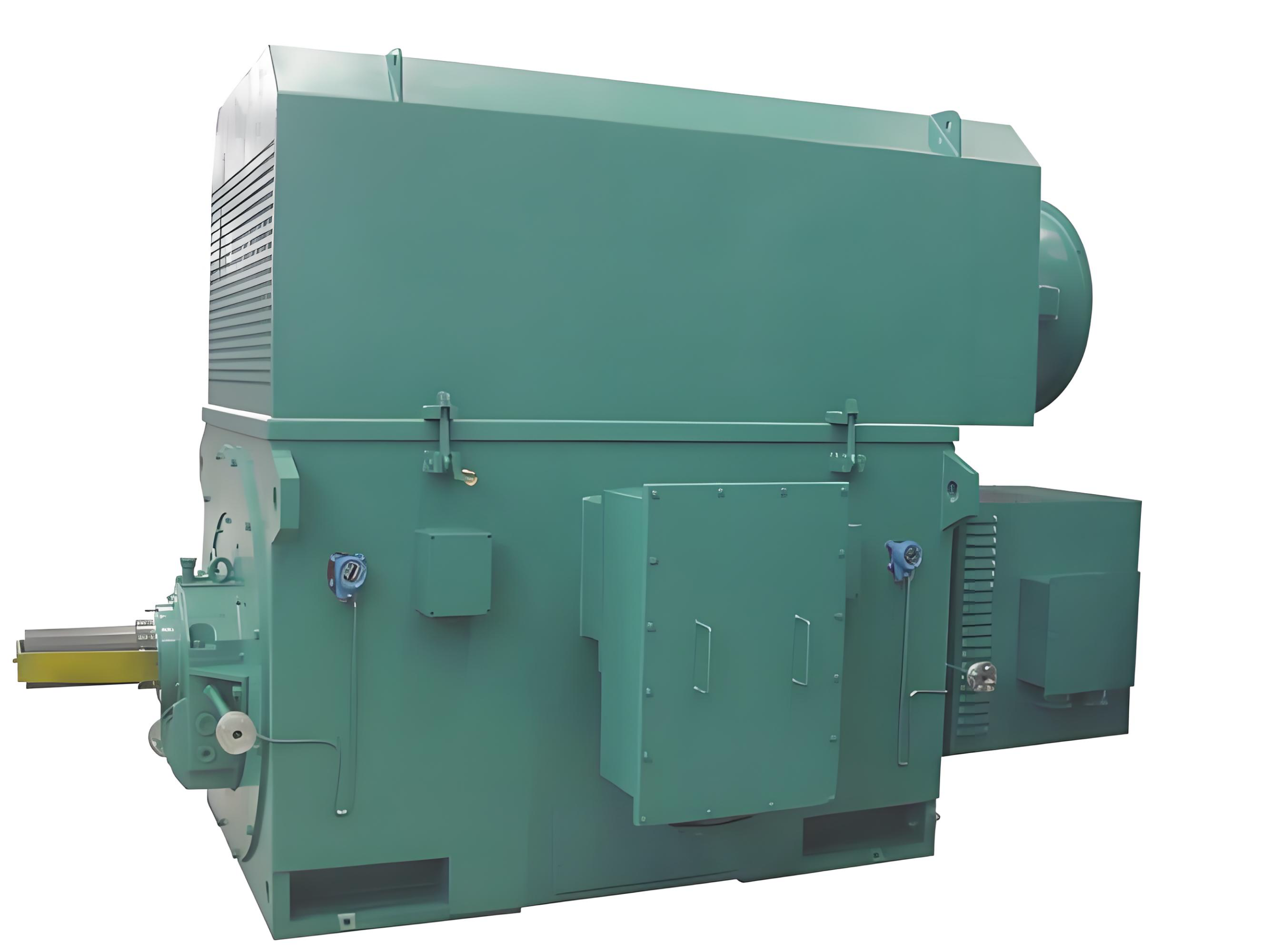

Xi’an Taifu Simo Motor YRKS Series Wound Rotor Air-to-Water Cooled High Voltage Motor – Professional Guide
Innovative Air-to-Water Cooling Technology Combined with Wound Rotor Design Delivering Powerful Drive for Heavy-Duty Industrial Applications
The Xi’an Taifu Simo Motor YRKS Series Wound Rotor Air-to-Water Cooled High Voltage Motor is a high-performance power solution specifically developed for heavy-duty industrial applications. This series perfectly integrates advanced wound rotor technology with an efficient air-to-water cooling system, ensuring outstanding operating performance and excellent energy efficiency even under harsh working conditions. It is an ideal power choice for mining, metallurgy, building materials, and other heavy industries.
Product Model Identification – Accurate Motor Specification Recognition
The Simo Motor YRKS series wound rotor air-to-water cooled high voltage motor adopts a standardized model naming system. Taking YRKS7101-4 as an example:
- “YRKS” designation: Enclosed wound rotor three-phase asynchronous motor with air-to-water cooler
- “7101” code:
- “710” indicates a frame center height of 710 mm
- “1” represents core length No.1
- “4” poles: Indicates a 4-pole motor configuration
This naming system strictly follows JB/T 7594-1994 technical standards, ensuring users can quickly and accurately identify key motor parameters for reliable equipment selection.
Technical Overview – Professional Design for Heavy-Duty Industrial Demands
Core Technical Features
The YRKS series three-phase asynchronous motors (center height 710–1000) are 10 kV wound rotor high voltage motors utilizing innovative air-to-water cooling technology. The protection class reaches IP44 or IP54, with a cooling method of ICW81A. The dedicated 10 kV voltage design allows direct connection to 10 kV power grids, simplifying system configuration, reducing investment costs, and lowering operational energy consumption.
Advanced Insulation System
The stator windings use high-quality Class F insulation materials, with securely bound winding ends. During manufacturing, the windings undergo multiple inter-turn impulse voltage tests and power frequency withstand voltage tests. Advanced VPI (Vacuum Pressure Impregnation) solvent-free varnish technology is applied, ensuring excellent insulation performance, superior mechanical strength, and strong moisture resistance.
The rotor windings are made of high-purity copper conductors and also adopt Class F insulation, guaranteeing reliability under high-speed and high-load operating conditions.
Flexible Bearing Configuration
According to different power ratings and speed requirements, the YRKS series motors are available with both rolling bearings and sliding bearings. Motors with frame sizes H710–800 are equipped with professional sliding bearing structures to ensure stable operation under heavy loads. The standard protection class is IP44, with customized options available for other voltages, frequencies, and protection levels.
Core Technical Advantages – Solid Assurance of Superior Performance
Innovative Air-to-Water Cooling System
The YRKS series motors adopt the ICW81A cooling method, using a high-efficiency air-to-water heat exchanger to achieve optimal heat dissipation. Compared with traditional cooling solutions, air-to-water cooling performs exceptionally well in high-temperature environments and confined spaces, ensuring stable operating temperatures during continuous heavy-load operation.
Excellent Starting and Speed Regulation Performance
The YRKS series wound rotor air-to-water cooled high voltage motors provide outstanding starting characteristics, delivering high starting torque with relatively low starting current. They are especially suitable for:
- Applications with limited grid capacity where squirrel cage motors cannot start
- Heavy-duty equipment requiring frequent starts or long starting times
- Industrial applications requiring speed regulation within a certain range
- Special equipment such as heavy-duty hoists, rolling mill units, and wire drawing machines
Robust Box-Type Structural Design
The motor features a high-strength box-type structure with excellent mechanical strength and rigidity. The mounting arrangement is IMB3, designed for continuous duty (S1 rating), ensuring adaptability to harsh industrial environments.
Energy-Saving and Environmentally Friendly Design
Through optimized electromagnetic design combined with advanced cooling technology, the YRKS series motors achieve high energy efficiency, low noise, low vibration, and reduced weight while maintaining reliable performance, fully meeting modern industrial requirements for energy saving and environmental protection.
Simo Motor Comprehensive Quality Assurance System
Corporate Strength
Simo Motor Group Co., Ltd. is a leading enterprise in China’s motor manufacturing industry, specializing in the R&D and production of large and medium-sized high- and low-voltage AC and DC motors. The company operates a complete industrial chain covering motor design and manufacturing, electrical control, machining, mold making, casting, and logistics, providing comprehensive power system solutions.
Certifications and Honors
- Quality management system: ISO9001 certification
- Environmental and safety management: ISO14000 and OHSAS18000 certifications
- International product certifications: CE (EU), UL (USA), CCC (China)
- Industry status: China Machinery Industry Top 500, Top 100 Electrical Industry Enterprises
- Quality honors: AAA Credit Enterprise, Provincial and Municipal Famous Brand Products, “China Light of Fame” Brand
Strict Quality Commitment
- Strict quality standards: Manufactured and inspected according to national and international standards; non-conforming products are never released
- Comprehensive performance testing: Each motor undergoes 72-hour continuous operation testing after final assembly
- On-time delivery assurance: Products delivered strictly according to contract terms, with early delivery available upon agreement
- Responsive after-sales service: Customer issues responded to within 24 hours, on-site service initiated within 48 hours
- Warranty policy: Three-guarantee service for quality issues, with return or replacement if repairs fail to meet factory standards
- Lifetime service support: Lifetime cost-price maintenance service after sale
Ordering Guide and Technical Parameters
Standard Configuration Parameters
| Parameter Category | Standard Specification |
|---|---|
| Motor model | YRKS7101-4 |
| Mounting arrangement | IMB3 |
| Rated power | 2800 kW |
| Protection class | IP44 or IP54 |
| Rated voltage | 6000 V |
| Cooling method | IC01 |
| Rated frequency | 50 Hz |
| Insulation class | Class F |
| Synchronous speed | 1500 r/min |
| Ambient conditions | Altitude ≤1000 m, ambient temperature 40°C |
Important Notes
- Rotation direction: Clockwise rotation by default (viewed from the shaft extension end)
- Transmission limitation: Belt drive is not permitted for 4-pole motors; if required, consultation with the manufacturer is mandatory
- Technical standard: Products are strictly manufactured in accordance with JB/T 7594-1994
Ordering Procedure
Standard Ordering Process
- Review the product catalog to confirm the required model and specifications
- Priority is given to standard models to reduce cost and shorten delivery time
- Clearly specify motor model, power, voltage, frequency, and other key parameters in the contract
Customization Options
- Special requirements must be clearly stated in the contract
- Customization available for other voltage levels and special protection classes
- All special requirements must be confirmed with the factory technical department in advance
Professional Selection Recommendations
When selecting a YRKS series wound rotor air-to-water cooled high voltage motor, the following factors should be carefully considered:
- Load characteristics: load type, starting frequency, load inertia, and speed regulation requirements
- Power grid conditions: voltage level, grid capacity limitations, voltage fluctuation range
- Operating environment: temperature, humidity, altitude, and cooling water quality
- Installation constraints: available installation space and cooling water supply conditions
- Maintenance requirements: expected maintenance intervals and ease of maintenance
For heavy-duty industrial applications requiring high starting torque, limited grid capacity, or adjustable speed capability, the Simo Motor YRKS series wound rotor air-to-water cooled high voltage motor is the most ideal solution.
Conclusion
The Xi’an Taifu Simo Motor YRKS Series Wound Rotor Air-to-Water Cooled High Voltage Motor has become an indispensable power solution for heavy industries thanks to its innovative technical design, superior cooling performance, and reliable operational stability. Supported by strong technical expertise and a comprehensive service system, Simo Motor provides professional technical support and dependable after-sales service for every customer.
For detailed technical specifications or customized motor selection support, please contact the Simo Motor professional technical team for comprehensive service and assistance.
