Xi’an Simo Motor YE2 Series High-Efficiency Motor – Professional Guide

Green Power Solution – Designed for Industrial Energy Savings and Compliance with National Efficiency Standards

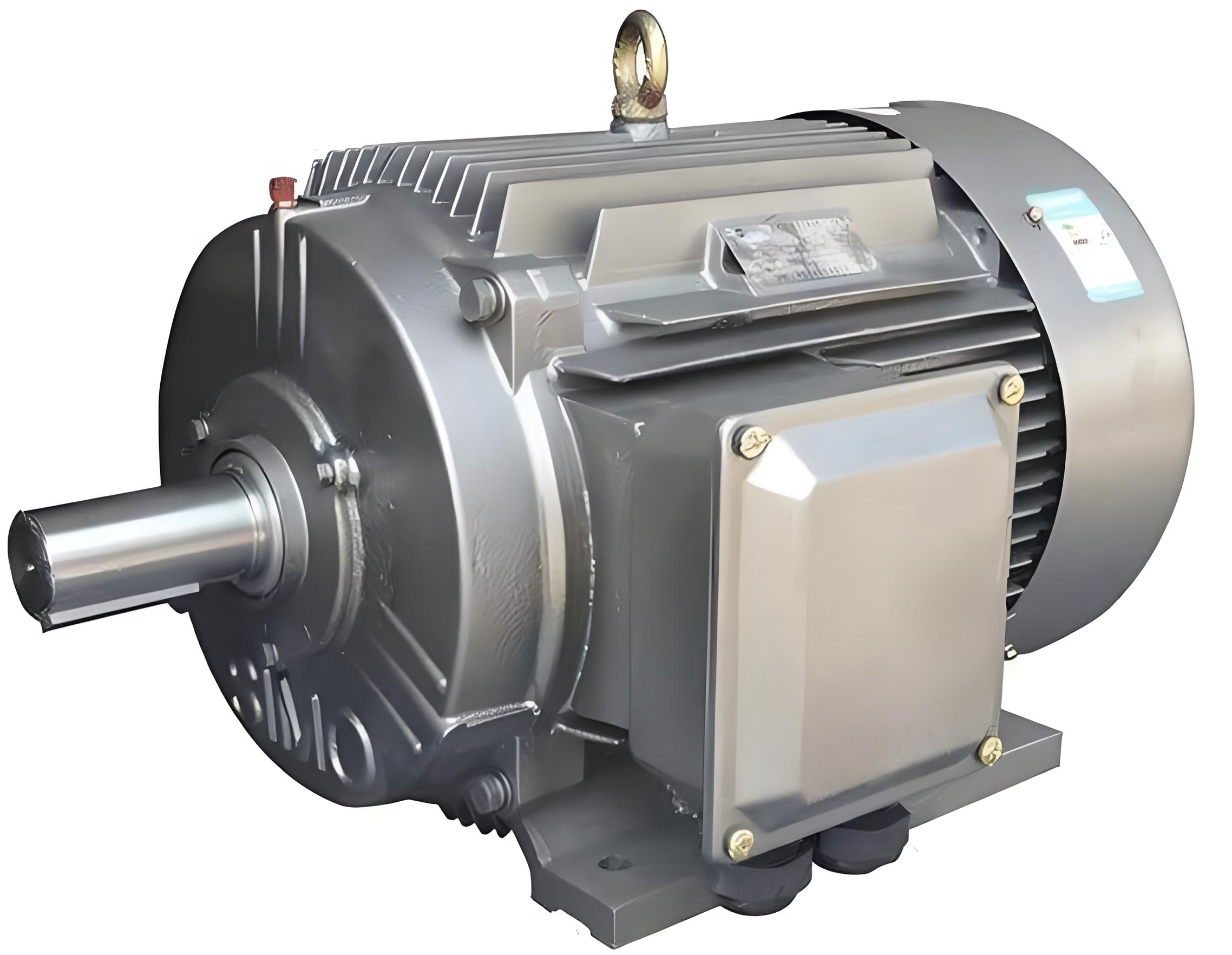

"(《世界人权宣言》) YE2 series (IP55) high-efficiency three-phase asynchronous motor represents the next generation of energy-saving motors. This series combines excellent energy efficiency, reliable operational performance, 和 broad environmental adaptability, fully meeting national efficiency standards and providing a green and reliable industrial power solution.

1. Product Overview – Advanced High-Efficiency Power

Efficiency Standards & Features

• Compliance with National Standards: GB18613-2012 for medium and small three-phase asynchronous motors (Efficiency Level 3)
• International Compatibility: Equivalent to IEC60034-30 IE2 efficiency grade
• Efficiency Measurement: Input-output power loss method according to GB/T1032-2005

Application Scope

YE2 motors offer reliable performance across a wide range of industrial applications:

• General industrial equipment: machine tools, water pumps, fans, compressors
• Material handling systems: conveyors, transport devices
• Processing equipment: mixers, printing machines
• Agricultural machinery
• Food processing machinery
• Environmental suitability: non-flammable, non-corrosive industrial environments

---

2. Core Technical Specifications

Standard Specifications

• Frame size: 80-355
• Protection grade: IP55 (dust-proof, splash-proof)
• Cooling method: IC411 (self-ventilated)
• Duty type: Continuous operation (S1)
• Insulation: F-class insulation system, with temperature rise tested to B-class
• Lubrication: H280-355 frames equipped with dedicated oil lubrication

Electrical Parameters

• Rated voltage: 380V (optional 660V)
• Rated frequency: 50 赫兹
• Power range: 0.75–375 kW
• Poles: 2, 4, 6
• Connection type:
  • ≤3 kW: Star (Y)
  • 3 kW: Delta (Δ)
• Standards compliance: YE2 series technical requirements for 80-355 frame motors

---

3. Installation & Structural Configuration

Mounting Forms

YE2 series supports multiple installation forms to meet diverse equipment integration needs:

• Horizontal & vertical types: B3, B5, B35, V1
• Flange types: B14, B6, B7, B8
• Special vertical/flange types: V5, V6, V3, V15, V36, V18, V19

This flexibility ensures compatibility with different machine layouts and installation requirements.

Environmental & Electrical Conditions

• Altitude: ≤1000m
• Ambient temperature: -15°C to 40°C
• Power supply tolerance: ±5% voltage, ±1% frequency
• Transmission recommendation: Coupling drive preferred (belt drive limited for certain high-power motors)

---

4. Advantages & Key Benefits

Exceptional Energy Efficiency

• Optimized electromagnetic design and precision manufacturing
• Reduced operating costs and energy consumption
• Improved overall system efficiency, shortening payback period

Reliable Operational Performance

• Robust mechanical design with high-质量 bearings and seals
• Excellent thermal management and heat dissipation
• Stable electrical performance under varying loads

Environmental Adaptability

• IP55 protection
• Wide temperature operating range
• Reliable performance in industrial environments

---

5. Xi’an Simo Motor Quality Assurance

Enterprise Expertise

• Comprehensive motor R&D and manufacturing system
• Integration of electrical design, control systems, precision machining, and mold production

Certifications & Honors

• ISO9001, ISO14000, OHSAS18000
• CE (Europe), UL (USA), CCC (China) certifications
• AAA-quality enterprise, “National/City Brand Product” awards
• China Machinery Top 500, Top 100 Electrical Industry

Quality Commitments

• Strict adherence to national and industry standards
• 72-hour continuous operation testing
• Timely delivery and rapid technical support
• Three-year warranty and lifelong cost-based maintenance

---

6. Selection & Ordering Guidelines

Selection Considerations

• Transmission: For 5.5kW and above (2-pole) and 37kW and above (4-pole) motors, belt drive is not recommended; coupling or direct drive preferred
• Default configuration: Horizontal B3 mounting, B-class insulation, IP44 protection
• Special requirements: double shaft, reverse terminal box, inverse shaft rotation, tropical or outdoor anti-corrosion variants

Ordering Specifications

Include in contract:

• Motor model and frame size
• Rated power and speed
• Voltage and frequency
• Mounting form
• Noise class (if not specified, default 2-level)
• Any special environmental or technical requirements

---

7. Industrial Application & Economic Value

• Energy Savings: Reduced electricity consumption, improved operational efficiency
• Maintenance Efficiency: Longer life, reduced maintenance frequency
• Total Cost of Ownership: Lower overall industrial operating costs

---

结论

"(《世界人权宣言》) YE2 series high-efficiency three-phase asynchronous motor provides:

• Outstanding energy efficiency and cost savings
• Reliable performance and broad adaptability
• Ideal choice for industrial energy-saving upgrades and equipment replacement

Contact the Simo Motor technical team for detailed specifications, selection guidance, and customized energy-saving solutions.

---
